MSI Pro B650-A WiFi ProSeries Motherboard AMD Ryzen 9000/8000/7000 Series Processors, AMD AM5, ATX, DDR5
MSI Pro B650-A WiFi ProSeries Motherboard AMD Ryzen 9000/8000/7000 Series Processors, AMD AM5, ATX, DDR5
Original price was: ₨ 87,000.₨ 82,499Current price is: ₨ 82,499.
PRO B650-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
- Supports AMD Ryzen 9000 Series
- 4x DIMMs, DDR5 7600+MHz (OC)
- 14+2 DRPS with 80A SPS
- Premium Thermal Solution
WARRANTY = 10 MONTHS LOCAL
want a quote?
NOTE:
- 1: We update the prices at the start of every month.
- 2: These prices are not the exact ones, the calculator tells you the minimum and
maximum markets rates of the components - 3: We don’t have all the components available in the list above but you can contact us
to get the quote for the selected items. - 4: The purpose of the tool is to help you and give you an estimated price. Actual prices can be
a little different in some scenarios. - 5: This tool is just to help the customers so they can get an idea of prices. As we update prices at
the start of each month so the - prices can be a little bit different.
Description

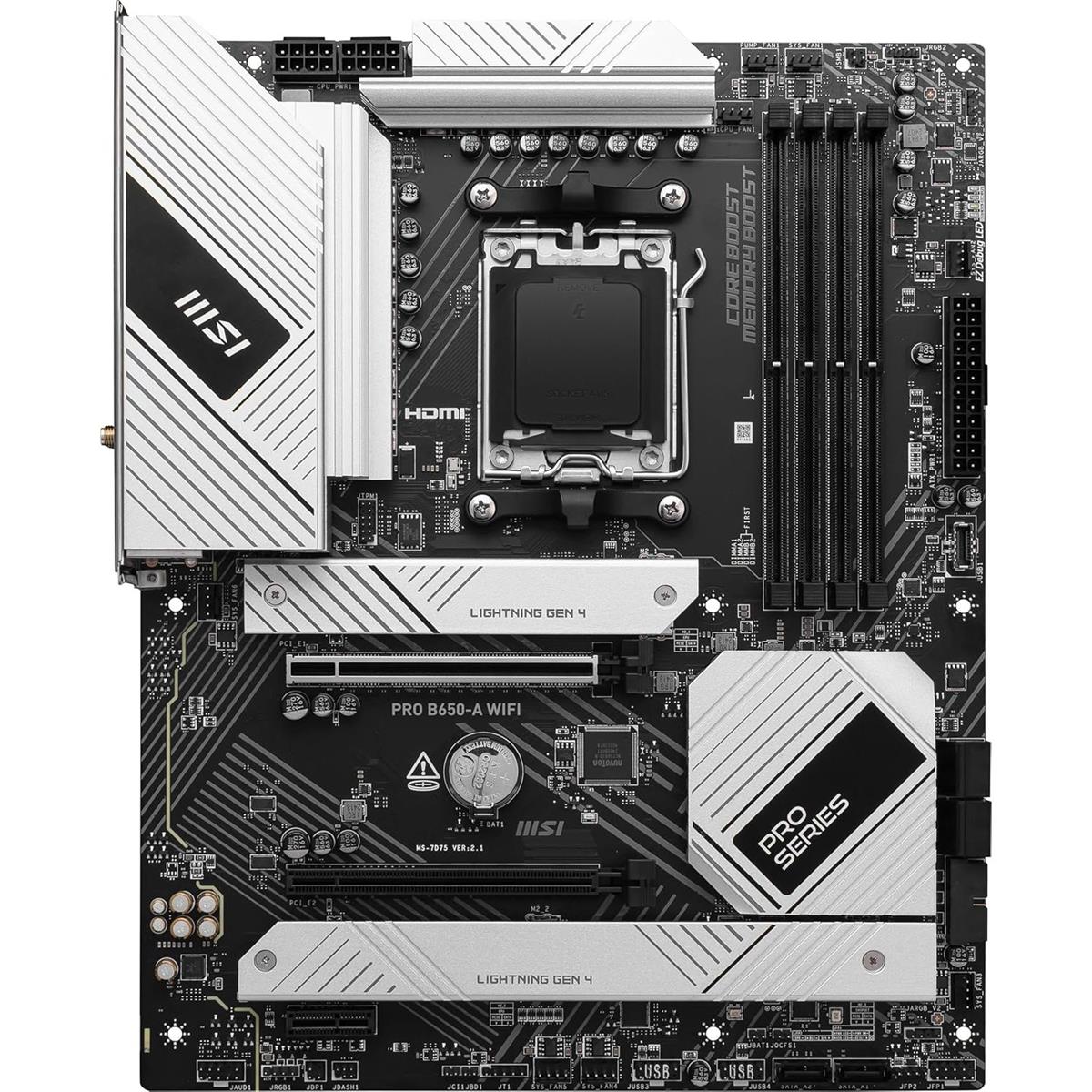

PRO B650-A WIFI
OPEN THE LINK TO CHECK DETAILS ON OFFICIAL SITE
Business Elegance
The PRO B650-A WIFI is a business-oriented ATX motherboard featuring the latest AMD B650 chipset that supports ample RAM capacity.
Supports AMD Ryzen 9000 / 8000 / 7000 Processors (Zen5 / Zen 4, AM5)
14 Duet Rail Power System with 80A SPS
2 x PCI-e 4.0 x16 slots
4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 7600MHz OC)
3 x Lightning Gen4 M.2 slots
7.1-Channel USB High Performance Audio with Audio Boost 5
USB 20Gbps Type-C
2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.3
Supports AMD Ryzen 9000 / 8000 / 7000 Processors
The PRO B650-A WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B650
14 Duet Rail Power System with 80A Smart Power Stage
With its dual 8 pin power connectors and exclusive Core Boost technology, the PRO B650-A WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding settings:
Digital PWM IC
14-Phase Duet-Rail CPU Power (80A SPS)
2-Phase SOC Power
1-Phase MISC Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK MOSFET thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
Gen4 M.2 Connectors
The PRO B650-A WIFI motherboard features MSI’s Gen4 M.2 slots:
3 x Gen4 x4 64Gb/s slots
Fortified PCIe 4.0 x16 slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
2 x PCIe 4.0/3.0 x16 slots* (primary with Steel Armor)
1 x PCIe 3.0 x1 slot
*Supports x16/x2
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow down if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
4 x DDR5 Dual Channel (7600+ MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7600 MHz, supports AMD EXPO.

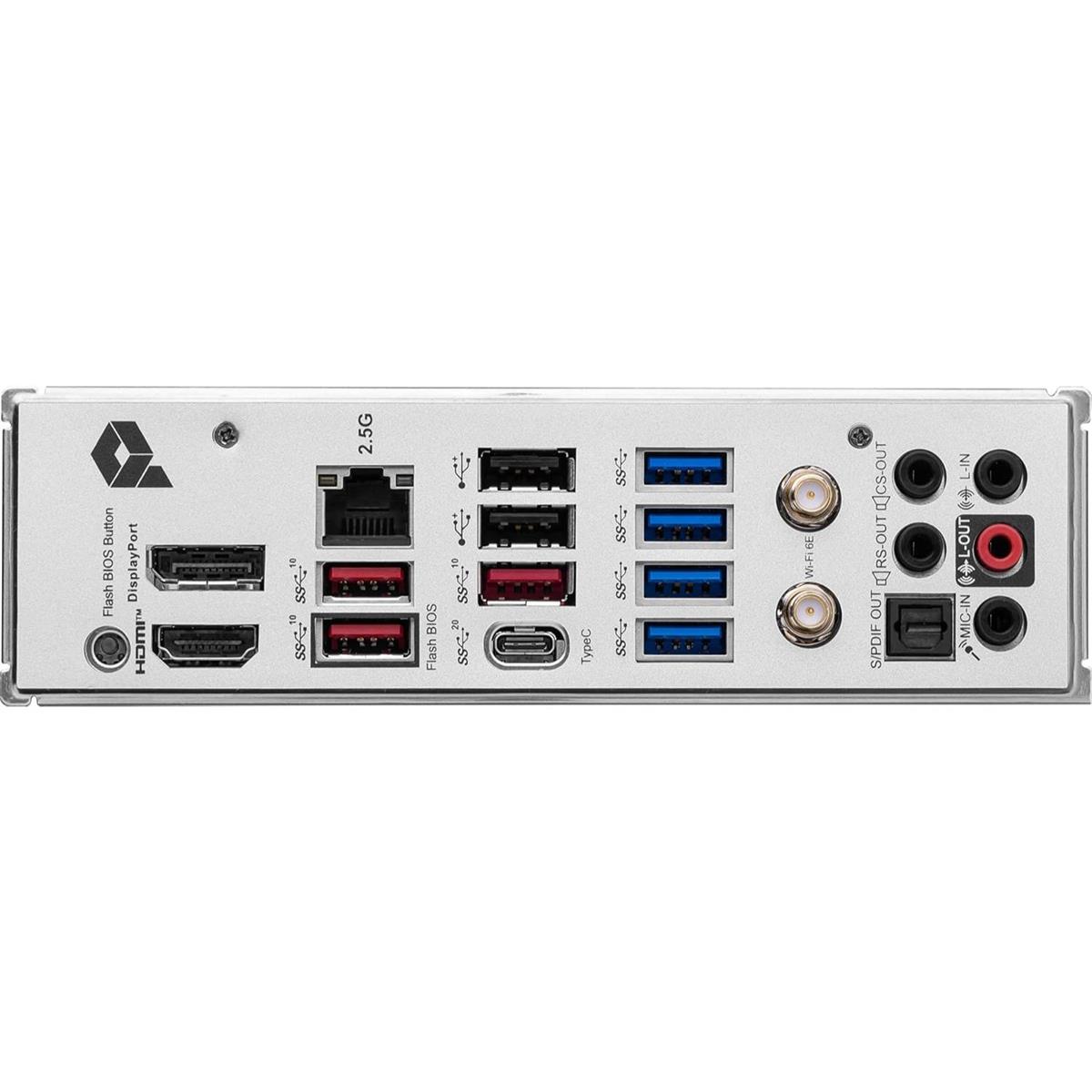

Wi-Fi 6E & Bluetooth 5.3
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 20Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
